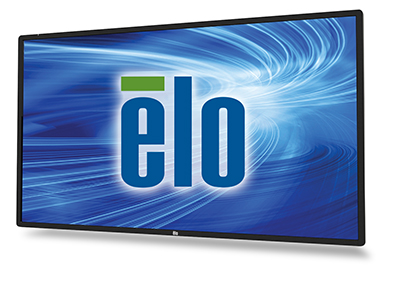

Elo 7001L
The 5501L Interactive Digital Signage display combines an optical multi-touch touchscreen with a professional-grade, large format display in a slim, integrated package. For retail, hospitality, commercial real estate, education, corporate meeting rooms or lobbies and other commercial applications, the large wide-screen format offers a high-quality, interactive canvas for attracting and engaging consumers. The 5501L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain. With a total thickness of 3.5 inches (89mm), the 5501L is compliant with the ADA requirement of less than 4" protrusion for wallmounted products when used with a compatible wall-mount.
With a 700 nit LED panel, the 5501L is a bright, high quality display suitable for public environments. The optical touchscreen enables up to six simultaneous touches for multi-user interaction. This touch technology offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Microsoft® Windows® 7 and Windows 8 operating systems. The touchscreen glass is 4mm thick and is fully tempered.
Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 5501L into a completely integrated all-in-one computer-without the need for any cables or additional mounting hardware.
Specifications
| Model | 7001L |
| Display | 69.5" diagonal, Active matrix TFT LCD with LED backlight |
| Aspect Ratio | 16:09 |
| Useful Screen Area | Horizontal: 60.6" (1539 mm)
Vertical: 34.1" (866 mm)
|
| Native (Optimal) Resolution | 1920 x 1080 60Hz |
| Other Supported Resolutions | 640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56Hz
1024x768 60Hz
1280x720 50,60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz,60Hz(does not scale; image is centered on panel and the remaining active area is filled with black)
1440x900 60Hz
1680x1050 60Hz
|
| Colors | 16.7 million |
| Brightness (Typical) | LCD Panel: 700 nits
with Optical Touch: 630 nits
|
| Response Time - (Typical) | 6 ms |
| Viewing Angle (Typical) | Horizontal: ±88° or 176° total
Vertical: ±88° or 176° total
|
| Contrast Ratio (Typical) | 5000:01:00 |
| On-Screen Display (OSD) | Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Information, MDC Protocol, Support and Help, System Temperature and Exit
Accessible through switches on the unit's tethered OSD control box.
|
| Touch Technology | Available with optical multi-touch (Windows 7 and Windows 8 compatible with up to 6 simultaneous touches, single touch compatible with Windows XP and Mac OS.). |
| Power Supply | Type: Internal AC |
| Input Voltage | 100-240 VAC 50/60Hz |
| Power Connector | IEC 60320 C14 |
| Power Consumption - Monitor only - 110V/60Hz(Typical) | ON: 145,0W
SLEEP: 13,5W
OFF: 0,5W
|
| Power Consumption - Monitor only - 230V @ 50Hz(Typical) | ON: 149,0W
SLEEP: 14,5W
OFF: 0,8W
|
| Power Consumption (Typical) | Monitor with ECMG2-i5 Computer Module:
S0 – ON, max audio, 100% CPU load, 100V/60Hz: 165W
S3 – STANDBY, 100V/60Hz: 13W
S5 – OFF, 100V/60Hz: 11W
|
| Input Video Format | Analog VGA, HDCP-capable HDMI 1.3, Display part 1.1a |
| Input Video Signal Connector | Female DE-15 for Analog VGA
HDMI Type A receptacle Display part 1.1a Connector
|
| Input Frequency | Horizontal: 31.5-73 kHz
Vertical: 47-63 Hz
|
| Speakers | Internal Speakers: 4x5 W stereo speakers, Configurable for stereo in portarite or landscape |
| Audio Input Connector | 3.5 mm TRS jack |
| Audio Input Signal Range | 1 Vrms max. stereo signal (standard PC line out) |
| Headphone Output Connector | 3.5 mm TRS jack |
| Monitor Dimensions (with Stand) | Width: 62.8" (1594 mm)
Depth: 3.5" (89 mm)
Height: 36.2" (921 mm)
|
| Shipping Box Dimensions | Width: 70.1" (1780 mm)
Depth: 14.4" (365 mm)
Height: 43.3" (1100 mm)
|
| Weight - Monitor Only | Unpackaged: 59.4 kg / 131 lb
Packaged: 73.4 kg / 162 lb
|
| Weight - Monitor With Computer Module | Unpackaged: 61.6 kg / 149 lb |
| Temperature | Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 50°C (-4°F to 122°F)
|
| Humidity (non-condensing) | Operating: 20-80%
Storage: 10-90%
|
| Form Factor | Wall-mount |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 4-hole Mount per MIS-F, 400 x 400, 8mm |
Part Numbers
| Technology |
Interface |
Surface Treatment |
Part # (RoHS
Compliant) |
Availability |
| Optical touch 70-inch |
USB |
Clear |
E027378 |
Americas, Asia-Pacific, EMEA |
|
