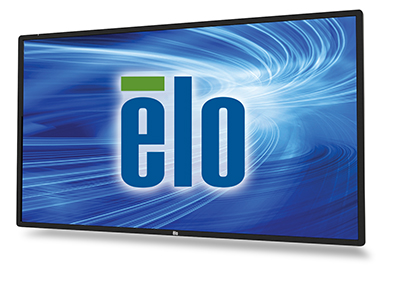

Elo 5501L

The 5501L Interactive Digital Signage display combines an optical multi-touch touchscreen with a professional-grade, large format display in a slim, integrated package. For retail, hospitality, commercial real estate, education, corporate meeting rooms or lobbies and other commercial applications, the large wide-screen format offers a high-quality, interactive canvas for attracting and engaging consumers. The 5501L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain. With a total thickness of 3.5 inches (89mm), the 5501L is compliant with the ADA requirement of less than 4" protrusion for wallmounted products when used with a compatible wall-mount.

With a 700 nit LED panel, the 5501L is a bright, high quality display suitable for public environments. The optical touchscreen enables up to six simultaneous touches for multi-user interaction. This touch technology offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Microsoft® Windows® 7 and Windows 8 operating systems. The touchscreen glass is 4mm thick and is fully tempered.

Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 5501L into a completely integrated all-in-one computer-without the need for any cables or additional mounting hardware.


Model 5501L
Display 54.6" diagonal, Active matrix TFT LCD with LED backlight
Aspect Ratio 16:09
Useful Screen Area Horizontal: 47.6" (1209 mm)
Vertical: 26.7" (680 mm)
Display Technology Full HD 1920 x 1080 (native) active matrix TFT LCD with LED backlight; 16.7m colors; 16:9 aspect ratio.
Other Supported Resolutions 640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56Hz
1024x768 60Hz
1280x720 50,60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz,60Hz(does not scale; image is centered on panel and the remaining active area is filled with black)
1440x900 60Hz
1680x1050 60Hz
Colors 16.7 million
Brightness (Typical) LCD Panel: 700 nits
with Optical Touch: 630 nits
Response Time - (Typical) 6ms
Viewing Angle (Typical) Horizontal: ±89°or 178° total
Vertical: ±88° or 176° total
Contrast Ratio (Typical) 4000:01:00
On-Screen Display (OSD) Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power Information, MDC Protocol, Support and Help, System Temperature and Exit
Accessible through switches on the unit's tethered OSD control box.
Touch Technology Available with optical multi-touch (Windows 7 and Windows 8 compatible with up to 6 simultaneous touches, single touch compatible with Windows XP and Mac OS.).
Power Supply Type: Internal AC
Input Voltage 100-240 VAC 50/60Hz
Power Connector IEC 60320 C14
Power Consumption - Monitor only - 120V/60Hz(Typical) ON: 122.0W
SLEEP: 13.0W
OFF: 2.0W
Power Consumption - Monitor only - 230V @ 50Hz(Typical) ON: 120.0W
SLEEP: 12.0W
OFF: 2.4W
Input Video Format Analog VGA, HDCP-capable HDMI 1.3, Display part 1.1a.
Input Video Signal Female DE-15 for Analog VGA
Connector HDMI Type A receptacle Display part 1.1a Connector.
Input Frequency Horizontal: 31.5-73 kHz
Vertical: 47-63 Hz
Speakers Internal Speakers: 4x5 W stereo speakers, Configurable for stereo in portrait or landscape
Audio Input Connector 3.5 mm TRS jack
Audio Input Signal Range 1 Vrms max. stereo signal (standard PC line out)
Headphone Output Connector 3.5 mm TRS jack
Monitor Dimensions Width: 49.8" (1265 mm)
Depth: 3.5" (89 mm)
Height: 29.0" (737 mm)
Shipping Box Dimensions Width: 56.0" (1422 mm)
Depth: 9.8" (249 mm)
Height: 34.5" (876 mm)
Weight - Monitor only Unpackaged: 43.0 kg / 94.8 lb
Packaged: 50.0 kg / 110.2 lb
Weight - Monitor With Computer Module Unpackaged: 44.7 kg / 98.5 lb
Packaged: 51.7 kg / 114 lb
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 50°C (-4°F to 122°F)
Humidity (non-condensing) Operating: 20-80%
Storage: 10-90%
Form Factor Wall-mount
MTBF 50,000 hours demonstrated
Mounting Options VESA 4-hole Mount per MIS-F, 600 x 600, 6mm

Part Numbers

Technology Interface Surface Treatment Part # (RoHS
Optical touch 55-inch USB Clear E000677 Americas, Asia-Pacific, EMEA
