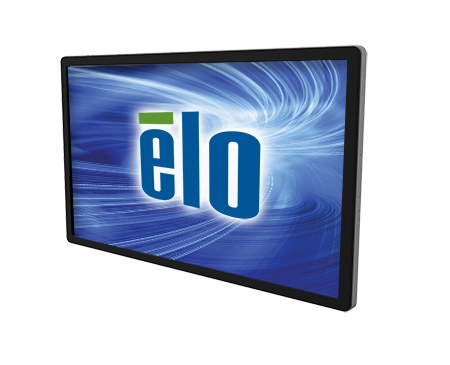

Elo 4201L
Elo’s new 4201L 42-inch interactive digital signage touchscreen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 4201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness of 3.2 inches (81 mm), the 4201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.
Available with IntelliTouch Plus surface acoustic wave dual-touch or optical multi-touch technology, display clarity is undistorted due to use of clear glass. The optical touchscreen enables up to six simultaneous touches for multi-user interaction. Optical technology offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Microsoft Windows 7 and Windows 8 operating systems. Tilt mounts are available for easy cable access. State of the art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming/ photo modes, black level adjustment, and on-screen menu enhancements.
Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 4201L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel® Core i3 processor and HD2500 graphics; and ECMG2-i5 based on a 3.6GHz Intel Core i5 processor and HD4000 graphics. The computer modules make the 4201L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.
Specifications
| Model | 4201L |
| Display | 42.0" diagonal, Active matrix TFT LCD with LED backlight |
| Aspect Ratio | 16:09 |
| Useful Screen Area | Horizontal: 36.6" (930 mm)
Vertical: 20.6" (523 mm)
|
| Display Technology | Full HD 1920 x 1080 (native) active matrix TFT LCD with LED backlight; 16.7m colors; 16:9 aspect ratio. Other resolutions supported |
| Other Supported Resolutions | 640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60HZ RB
1680x1050 60Hz, 60Hz RB
1920x1080 50, 60Hz
|
| Colors | 16.7 million |
| Brightness (Typical) | LCD panel: 700 nits
with IntelliTouch Plus: 630 nits
with Optical Touch: 630 nits
|
| Response Time - (Typical) | 6.0 msec |
| Viewing Angle (Typical) | Horizontal: ±89° or 178° total
Vertical: ±89° or 178° total
|
| Contrast Ratio (typical) | 4000:01:00 |
| On-Screen Display (OSD) | Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
Languages : English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts : OSD,Power
Accessible through switches on the unit's tethered OSD control box.
|
| Touch Technology | Available with IntelliTouch Plus (Dual Touch) and optical multi-touch (Windows 7 and Windows 8 compatible with up to 6 simultaneous touches, single touch compatible with Windows XP and Mac OS.). |
| Input Video Format | Analog VGA, HDCP-capable HDMI 1.3 and Display Port video |
| Input Video Signal Connector | Female DE-15 for Analog VGA
HDMI 1.3 ON Type A
DisplayPort 1.1a
|
| Input Frequency | Horizontal: 31.5 - 73 kHz
Vertical: 47-63 Hz
|
| Power Supply | Type: Internal AC |
| Input Voltage | 110-240 VAC 50/60Hz |
| Power Connector | IEC 60320 C14 |
| Power Consumption (typical) | Input power signal specifications: 100-240VAC 50/60Hz
Monitor Only Power Consumption (typical at 110V at 60Hz):
ON: 85W; SLEEP: 13W; OFF: 1W;
Monitor Only Power Consumption (typical at 230V at 50Hz):
ON: 82W; SLEEP: 14W; OFF: 2W;
|
| USB Ports | Type B |
| Speakers | Four 5W stereo speakers |
| Audio Input Connector | 3.5 mm TRS jack |
| Audio Input Signal Range | 1 Vrms max. stereo signal (standard PC line out) |
| Headphone Output Connector | 3.5 mm TRS jack |
| Monitor Dimensions | IntelliTouch Plus: Width: 39.2” (995 mm); Height: 23.1”(588 mm); Depth: 3.1” (77.7 mm)
Optical: Width: 39.2” (995 mm); Height: 23.1” (588 mm); Depth 3.2” (80.7mm)
|
| Shipping Box Dimensions | Width: 43.7” (1110 mm)
Depth: 8.5” (215 mm)
Height: 28.3” (720 mm)
|
| Weight1 | IntelliTouch Plus:
Unpackaged—with ECMG2: 53.7 lbs (24.4kg); without ECMG2: 48.8 lbs (22.2kg)
Packaged: with ECMG2: 69.1 lbs (31.4kg); without ECMG2: 64.2 lbs (29.2kg)
Optical:
Unpackaged—with ECMG2: 57.2 lbs (26.0kg); without ECMG2: 52.4 lbs (23.8kg)
Packaged: with ECMG2: 72.6 lbs (33.0kg); without ECMG2: 67.8 lbs (30.8kg)
|
| Temperature | Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 50°C (-4°F to 122°F)
|
| Humidity (non-condensing) | Operating: 20-80%
Storage: 10-95%
|
| Form Factor | Wall-mount optional desktop stand |
| MTBF | 50,000 hours demonstrated |
| Stand options | Optional stand available, order Part Number E455084. |
| Mounting options | VESA MIS-F, 400 x 400, 6mm
Optional wall mount kit available, order Part Number E750497
|
Part Number
| Technology |
Interface |
Surface Treatment |
Part #
(RoHS Compliant) |
Color |
Availability |
| IntelliTouch Plus |
USB |
Clear |
E000736 |
Black |
Worldwide |
| IntelliTouch Plus |
USB |
Clear |
E000737 |
White |
Worldwide |
| Optical Touch |
USB |
Clear |
E107085 |
Black |
Worldwide |
|
