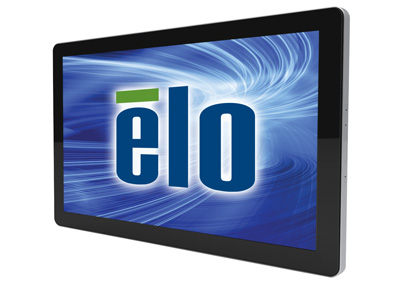

Elo 3201L

Elo's new 3201L 32-inch interactive digital signage touchscreen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 3201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness as thin as 2.8 inches (72 mm), the 3201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.

Now available with two choices of pure-glass touch technologies which are durable and well-suited for public environments. The IntelliTouch Plus surface acoustic wave multi-touch touchscreen provides display clarity which is undistorted due to use of clear glass. The Projected Capacitive (PCAP) touchscreen offers a fast, accurate, drift-free touch response and is compatible with Microsoft Windows® 7 and Windows® 8 operating systems with up to 10 touches recognized simultaneously.

Without an overlay or substrate, the pure-glass surface is durable and well-suited for public venues and high traffic areas. Elo's 3201L PCAP offers a unique, aesthetically-pleasing seamless, zero-bezel design that is resistant to dirt, impacts, scratches and other contaminants on the screen.Tilt mounts are available for easy cable access. State of the art HD display technology is utilized including a high contrast/brightness LED-backlight LCD panel, extended color gamut with movie/gaming/photo modes, black level adjustment, and on-screen menu enhancements.

Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 3201L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel® Core i3 processor and HD2500 graphics; and ECMG2-i5 based on a 3.6GHz Intel Core i5 processor and HD4000 graphics. The computer modules make the 3201L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.

Specifications

Model 3201L
Display 32.0" diagonal, Active matrix TFT LCD with LED backlight
Aspect Ratio 16:09
Useful Screen Area Horizontal: 27.5" (698 mm)
Vertical: 15.5" (393 mm)
Display Technology Full HD 1920 x 1080 (native) active matrix TFT LCD with LED backlight; 16.7m colors; 16:9 aspect ratio. Other resolutions supported
Other Supported Resolutions 640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60HZ RB
1680x1050 60Hz, 60Hz RB
1920x1080 50, 60Hz
Colors 16.7 million
Brightness (Typical) LCD panel: 350 nits
with IntelliTouch Plus: 315 nits
with Projected Capacitive: 301 nits
Response Time - (Typical) 8.0 msec
Viewing Angle (Typical) Horizontal: ±89° or 178° total
Vertical: ±89° or 178° total
Contrast Ratio (typical) 3000:01:00
On-Screen Display (OSD) Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
Languages : English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts : OSD, Power
Accessible through switches on the unit's tethered OSD control box.
Touch Technology Available with IntelliTouch Plus or Projected Capacitive
Input Video Format Analog VGA, HDCP-capable HDMI 1.3 and Display Port video
Input Video Signal Connector Female DE-15 for Analog VGA
HDMI 1.3 ON Type A
DisplayPort 1.1a
Input Frequency Horizontal: 60 - 73 kHz
Vertical: 47-63 Hz
Power Supply Type: Internal AC Input Voltage 110-230 VAC 50/60Hz
Power Connector IEC 60320 C14
Power Consumption (typical) Input power signal specifications: 100-240VAC 50/60Hz:
With IntelliTouch Plus:
- Monitor Only Power Consumption (typical at 110V at 60Hz):
ON: 57 W; SLEEP: 11 W; OFF: 1 W
- Monitor Only Power Consumption (typical at 230V at 50Hz):
ON: 56 W; SLEEP: 10 W; OFF: 2 W

With Projected Capacitive:
- Monitor Only Power Consumption (Typical at 110V at 60Hz):
ON: 64 W; SLEEP: 9 W; OFF: 1.5 W
- Monitor Only Power Consumption (Typical at 230V at 50Hz):
ON: 65 W; SLEEP: 9 W; OFF: 1.5 W
USB Ports Type B
Speakers Four 5W stereo speakers
Audio Input Connector 3.5 mm TRS jack
Audio Input Signal Range 1 Vrms max. stereo signal (standard PC line out)
Headphone Output Connector 3.5 mm TRS jack
Monitor Dimensions With IntelliTouch Plus:
Width: 30.0" (762 mm); Height: 18.0"(457 mm); Depth: 3.1" (78.0 mm)
With Projected Capacitive:
Width: 31.1" (790 mm); Height: 19.0"(484 mm); Depth: 2.8" (72.0 mm)
Shipping Box Dimensions Width: 34.5" (885 mm)
Depth: 7.9"(200 mm)
Height: 23.4"(595 mm)
Weight1 IntelliTouch Plus:
Unpackaged-with ECMG2: 35.3 lbs (16.0kg); without ECMG2: 29.8 lbs (13.5kg)
Packaged: with ECMG2: 50.9 lbs (23.1kg); without ECMG2: 45.4 lbs (20.6kg)
Projected Capacitive:
Unpackaged-with ECMG2: 36.4 lbs (16.5 kg); without ECMG2: 33 lbs (14.8kg);
Packaged: with ECMG2: 46.5 lbs (21.1 kg); without ECMG2: 43.3 lbs (19.4 kg)
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity(non-condensing) Operating: 20-80%
Storage: 10-95%
Form Factor Wall-mount optional desktop stand
MTBF 50,000 hours demonstrated
Stand options Optional stand available, order Part Number E455084.
Mounting options VESA MIS-F, 400 x 400, 6mm
Optional wall mount kit available, order Part Number E750497

Part Number

Technology Interface Surface Treatment Part #
(RoHS Compliant) 		Color Availability
IntelliTouch Plus USB Clear E415988 Black Worldwide
Projected Capacitive USB Clear E739717 Black Worldwide
