Elo 2740L

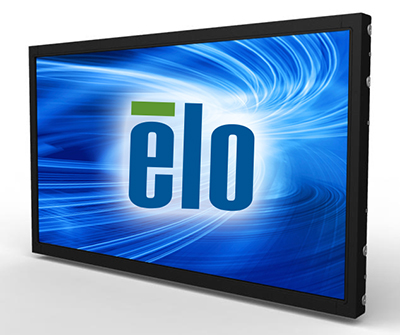

The Elo Touch Solutions 2740L 27-inch full HD open-frame touchmonitor delivers a professional-grade large format display in a slim, integrated package. The 2740L is designed for use in public environments in applications like information kiosks, ticketing, gaming machines, self-service stations and digital signage.
The 2740L is available with IntelliTouch Plus surface acoustic wave technology with multi-touch capabilities, supporting both Windows 7 and Windows 8, and a non touch version. This pure-glass touchscreen technology combines long-term reliability and drift-free stability with high-quality optics that preserves color purity. The bright, high contrast LED display offers a full HD cinematic-like experience to instantly grab and hold the user's attention.
LED backlighting also allows for a slim mechanical design with narrow outside dimensions giving kiosk integrators an edge in developing the most aesthetically pleasing enclosure designs. Compared to LCDs with CCFL backlights, LED displays consume less power, and generate less heat.
Because the product enclosure is controlled by Elo Touch Solutions’ specifications and tooling, Elo's open-frame monitors have a long-lasting product cycle, which is important to maintain continuity through all phases of project rollouts and servicing. Future-generation panels can be phased in without any external changes needed to the kiosk or cabinet.
Specifications
| Model |
2740L |
| Color |
Black |
| LCD Technology |
Active matrix TFT LCD with LED backlight |
| Diagonal size |
27” |
| Dimensions |
632.2 x 373.4 x 42.6 mm / 24.9 x 14.7 x 1.7 inches |
| Aspect Ratio |
16:09 |
| Active Display Area |
597.6 x 336.2 mm/23.5 x 1.7 inches |
| Native Resolution |
1920 x 1080 |
| Preset Video Timings |
640x480 @ 60Hz
720x576 @ 50Hz
800x500 @ 60Hz
800 x600 @ 56Hz, 60Hz
1024x768 @ 60 Hz
1280x720 @ 56Hz, 60Hz
1280x800 @ 60 Hz
1280x1024 @ 60 Hz
1366x768 @ 60 Hz, 60Hz RB
1440x900 @ 60 Hz, 60Hz RB
1680x1050 @ 60 Hz, 60Hz RB
1920x1080@50Hz, 60Hz |
| Colors |
16.7 million |
| Brightness (Typical) |
LED panel: 300 nits IntelliTouch Plus: 270 nits |
| Response Time (Tr+tf) (Typical) |
12ms |
| Viewing Angle (Typical) |
Horizontal: 178°
Vertical: 178° |
| Contrast Ratio (Typical) |
3000:01:00 |
| On-Screen Display (OSD) |
Accessible through switches on the OSD Control Remote
accessory
Controls: Menu, Up, Down, Select
Settings: automatic adjustment, Contrast, Brightness, H position,
V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color
Temperature, Clock, Phase, OSD timeout, O Source
Languages: English, French, Italian, German, Spanish, Japanese,
Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power |
| Video |
Analog VGA on Female DE-15 connector; Digital DVI on Female DVI-D , Dual-Link connector
Input Video Horizontal Sync frequency range: 31.5-80KHz
Input Video Vertical Sync (frame rate) frequency range: 50-75Hz |
| Power |
Monitor input power connector: Coaxial power jack
(2.1mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor input power signal specifications: 12VDC +/- 5%
External DC - Optional power brick (sold separately)
Adapter input connector: IEC 60320 C14
Adapter input voltage range: 100-240VAC, 50/60Hz |
| Power Consumption (Typical): |
ON (monitor + AC/DC adapter): 38W;
SLEEP (monitor + AC/DC adapter): 1.3W;
OFF (monitor + AC/DC adapter): 0.4W |
| Weight |
Unpackaged: 7,5 kg (16,5 lb); Packaged: 10,5 kg (23,1 lb)
Shipping Dimensions:788 x 536 x 233 mm / 31 x 21.1 x 9.2 inches |
| Temperature |
Operating: 0 °C to 40 °C (32 °F to 104 °F)
Storage: -20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity (non-condensing) |
Operating: 20% to 80%; Storage: 10% to 90% |
| MTBF |
50.000 hours demonstrated |
| Mounting options |
200mm x 100mm VESA 4-hole mounting interface on rear of unit.
Side mounting brackets included with the unit. |
Part Numbers
| Technology |
Interface |
Surface Treatment |
Part # (RoHS
Compliant) |
Availability |
| IntelliTouch Plus |
USB |
Clear |
E220828 |
Worldwide |
| Non touch |
Dark Grey |
Clear |
E104733 |
Worldwide |
|
