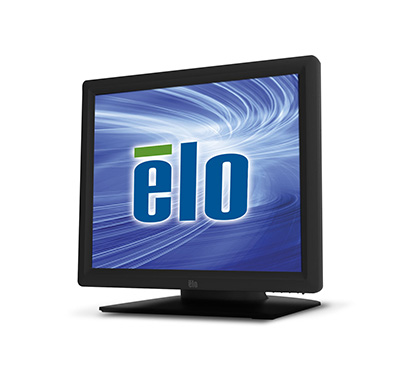

Elo 1717L

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.

The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Specifications

Model 1717L
Color Black or White
LCD Technology Active matrix TFT LCD with LED backlighting
Diagonal size 17.0"
Monitor thickness 1.7 inches/43 mm panel depth
Aspect Ratio 5:4
Active Display Area 13.3 x 10.6 inches/338 x 270 mm
Native Resolution 1280 x 1024
Preset Video Timings 640x480 @ 60Hz, 75Hz
720x400 @ 70Hz
800x600 @ 56Hz, 60Hz, 75Hz
1024x768 @ 60Hz, 75Hz
1280x1024 @ 60Hz, 75Hz
Colors 16.7 million
Brightness
(Typical)
LCD panel: 250 nits
with AccuTouch: 200 nits
with IntelliTouch: 225 nits
with iTouch: 225 nits
Viewing Angle
(Typical)
Horizontal: ±85° or 170° total
Vertical: ±80° or 160° total
Contrast Ratio (Typical) 800:1
On-Screen Display
(OSD)
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio,
Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese,
Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
Video • Analog VGA on Female DE-15 connector • Input Video Horizontal Sync frequency range: 31.5- 80KHz
Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
Touch Interface Serial (RS232) and USB
Monitor input power
connector – AC
IEC 60320 C6
Monitor input power
signal specifications
100-240VAC, 50/60Hz
Monitor input power
connector - DC
Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor input power
signal specifications
12VDC ±5%
Note Optional AC-DC power adapter sold for this monitor
Adapter input
connector
IEC 60320 C14
Adapter input voltage
range
100-240VAC, 50/60Hz
Power Consumption
(Typical)
ON (monitor only) : 20W
SLEEP (monitor only) : 1.8W
OFF (monitor only) : 1.4W
Shipping Dimensions 20.1 x 9.2 x 20 inches/511 x 233 x 510 mm
Dimensions
(with stand)
15.4 x 7.5 x 14.2 inches/392 x 215 x 361 mm
Weight Unpackaged: 11.9 lb/ 5.4 kg
Packaged: 18.3lb/ 8.3 kg
Temperature Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (20°C to 60°C)
Humidity
(noncondensing)
Operating: 20%-80%
Storage: 10%-90%
MTBF 50,000 hours demonstrated
Mounting Options 75 mm VESA mount
Capped through-mount holes
Sealing Touchscreen sealed to bezel
Touchscreen sealed to LCD
Other Features Security lock receptacle

Part Numbers

Part Number Technology Interface Bezel Surface Treatment Color Availability
E877820 AccuTouch Serial/USB Yes Antiglare Black Worldwide
E371267 AccuTouch Serial/USB Yes Antiglare White Worldwide
E649473 AccuTouch Serial/USB No Antiglare Black Worldwide
E679434 AccuTouch Serial/USB No Antiglare White Worldwide
E077464 IntelliTouch Serial/USB Yes Antiglare Black Worldwide
E214112 IntelliTouch Serial/USB Yes Antiglare White Worldwide
E179069 iTouch Serial/USB No Clear Black Worldwide
E227652 iTouch Serial/USB No Clear White Worldwide
E017030 iTouch Serial/USB No Antiglare Black Worldwide
E415033 iTouch Serial/USB No Antiglare White Worldwide

External Elo Peripherals

Peripheral Interface Color Part #(RoHS Compliant)
Magnetic Stripe Reader USB Black E500356
Magnetic Stripe Reader USB White E233227
