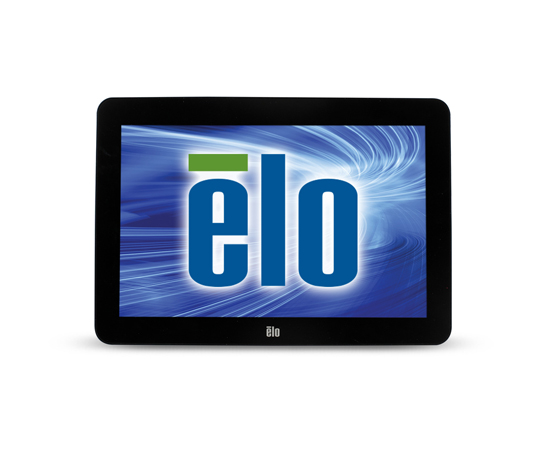

Elo 1002L
The Elo M-Series 1002L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement at the point of sale. The sleek wide aspect ratio touchscreen features edge-to-edge glass with display area real estate to showcase engaging, memorable, and rewarding content. For environments where space is scarce, the 1002L is ideal as a POS terminal customer-facing display. Built to withstand the rigors of continuous public use, the 1002L is well suited for high use retail venues. The sleek, thin look pairs well with any modern POS system

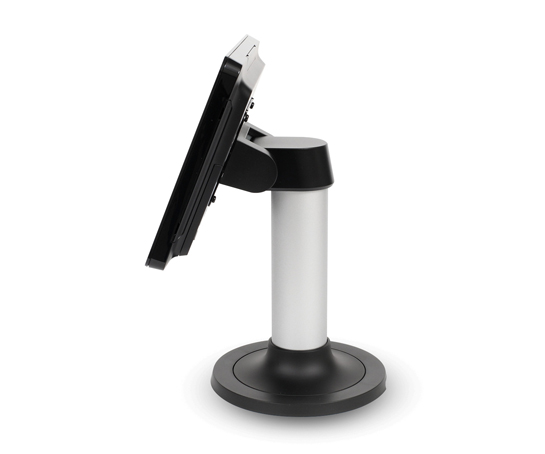

The multiple mount and stand options ensure installation flexibility and accommodate tabletop use as well as wall- and pole-mount with standard VESA mount patterns.
Optional color coordinated retail accessories include a Magnetic Stripe Reader (MSR), barcode scanner and Near Field Communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Specifications
| Model |
1002L |
| Color |
Black |
| LCD Technology |
Active matrix TFT LCD with LED backlighting |
| Diagonal size |
10.1" |
Monitor dimensions
(WxHxD) |
10.02 x 6.98 x 1.14 inches
254.6 x 177.3 x 29 mm |
| Monitor Thickness |
1.14 inches/29 mm panel depth |
| Aspect Ratio |
16:10 |
| Active Display Area |
8.57 x 5.37 inches
218 x 136.6 mm |
| Native Resolution |
1280 x 800 |
| Preset Video Timings |
640x480 @ 60Hz
800x600 @ 60Hz
1024x768 @ 60Hz
1280x1024 @ 60Hz
|
| Colors |
262,000 |
Brightness
(Typical) |
LCD panel: 350 nits
with IntelliTouch Pro PCAP, DC Power: 315 nits
IntelliTouch Pro PCAP, USB Power: 176 nits
|
Response Time
(Tr+tf) (Typical) |
25 ms |
Viewing Angle
(Typical) |
Horizontal: ±85° or 170° total
Vertical: ±85° or 170° total
|
| Contrast Ratio (Typical) |
700:1 |
| On-Screen Display (OSD) |
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
|
| Video |
Input Video Format: Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included)
Input Video Horizontal Sync frequency range: 31.5- 60KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz
|
| Touch Interface |
USB |
| Temperature |
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (20°C to 60°C)
|
Humidity
(noncondensing) |
Operating: 20%-80%
Storage: 10%-95%
|
| MTBF |
50,000 hours demonstrated |
| Mounting options |
VESA 4-hole 75mm mounting interface on rear of unit |
| Other Features |
• Optional wall mount kit available tabletop, shelf- and pole mounts available, see Accessories tab
• 2 x 2W internal speakers
• Kensington lock slot
|
Part Numbers
| Part Number |
Technology |
Interface |
Surface Treatment |
Color |
| E045337 |
IntelliTouch Pro |
USB |
Antiglare |
Black |
| E138394 |
Non-touch |
USB |
Antiglare |
Black |
Accessories
| Part Number |
Accessory |
| E001002 |
Magnetic Stripe Reader |
| E001004 |
NFC Reader |
| E093433 |
Barcode Reader |
| E001003 |
VFD Customer Display |
| E047458 |
Pole Mount – 6 inch |
| E047663 |
Pole Mount – 12 inch |
| E047864 |
Pole Mount – 18 inch |
| E048069 |
Floor Stand – 5 foot |
| E043382 |
Shelf Mount Bracket |
| E045151 |
Pole Mount Bracket |
| E160104 |
Table-top Stand |
| E332358 |
Rear Facing Customer Display Bracket |
| E210789 |
1.8m Cable Kit |
| E210606 |
3m Cable Kit |
| E211174 |
Power Brick Kit – 1.8m Power Cable |
| E210973 |
Power Brick Kit – 3m Power Cable |
|
