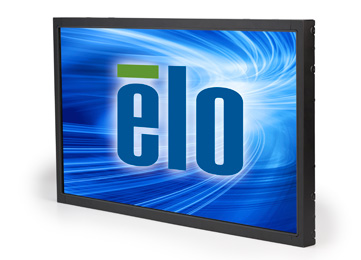

Elo 3243L

The Elo Touch Solutions 3243L 32-inch full HD open-frame touchmonitor provides smooth dual-touch performance with IntelliTouch Plus surface acoustic wave technology. The 3243L touchmonitor is 2.3-inches in total thickness and less than 1-inch in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hotels, gaming, transportation and other commercial uses. Applications in demanding public access environments are enabled with UL60950 ball drop glass compliance. The 3243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 3243L.

The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.

Specifications

Model 3243L
Display 32.0" diagonal
Aspect Ratio 16:9, active matrix TFT LCD
Useful Screen Area Horizontal: 27.5" (698 mm)
Vertical: 15.4" (392 mm)
Native (Optimal) Resolution 1920 x 1080
Other Supported Resolutions 640 x 480 at 60Hz
800 x 500 at 60Hz
800 x 600 at 56/60Hz
1024x768 at 60Hz
1280 x 720 at 60Hz
1280x960 at 60 Hz
1280x1024 at 60Hz
1360x768 at 60 Hz
1366x768 at 60 Hz
1440x900 at 60 Hz
1600x1200 at 60 Hz
1680x1050 at 60 Hz
1920x1080 at 60 Hz
Colors 16.7 million
Brightness LCD panel: 350 nits
(Typical) IntelliTouch Plus: 315 nits
Response Time - Total (Typical) 8 msec
Viewing Angle Horizontal: 89 or 178 total
(Typical) Vertical: 89 or 178 total
Contrast Ratio (typical) 3000:01:00
On-Screen Display (OSD) Accessible through switches on the OSD Control Remote accessory. Controls (side): Menu, Up, Down, Select
On-Screen Display (OSD) Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Input Video Format Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)
Input Video Signal Connector Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only), Female DVI-D Dual Link Connector (Asian model only)
Input Frequency Horizontal: 31-80 kHz
Vertical: 47-63 Hz
Power Supply Internal AC
Input Voltage AC: 100-240 VAC, 50/60 Hz
Input Connector AC: IEC 60320 C14
Power Consumption (Typical) ON (monitor + AC/DC adapter): 55W; SLEEP (monitor + AC/DC adapter): 1.4W; OFF (monitor + AC/DC adapter): 0.3W
Monitor Dimensions Width: 28.95" (735.4 mm)
Height: 17.44" (443 mm)
Depth: 2.28" (58 mm)
Shipping Box Dimensions (WxDxH) Width: 39.05" (992 mm)
Height: 26.45" (672 mm)
Depth: 11.65" (296 mm)
Weight Actual: 27.12 lb (12.3 kg)
Shipping: 41.5 lb (18.8 kg)
Temperature Operating: 0C to 40C (32F to 104F)
Storage: -20C to 60C (-4F to 140F)
Humidity Operating: 20-80%
(noncondensing) Storage: 10-90%
Form Factor Open-frame
Enclosure Color Black
MTBF 50,000 hours demonstrated
Mounting Options 400mm x 200mm VESA mount Side mounting brackets included
Sealing Touchscreen sealed to bezel Touchscreen sealed to LCD

Part numbers

Technology Interface Surface Treatment Part # (RoHS
Compliant)
Availability
IntelliTouch Plus USB Clear E589724 Worldwide
IntelliTouch Plus USB Clear E444804 Asia/Pacific
