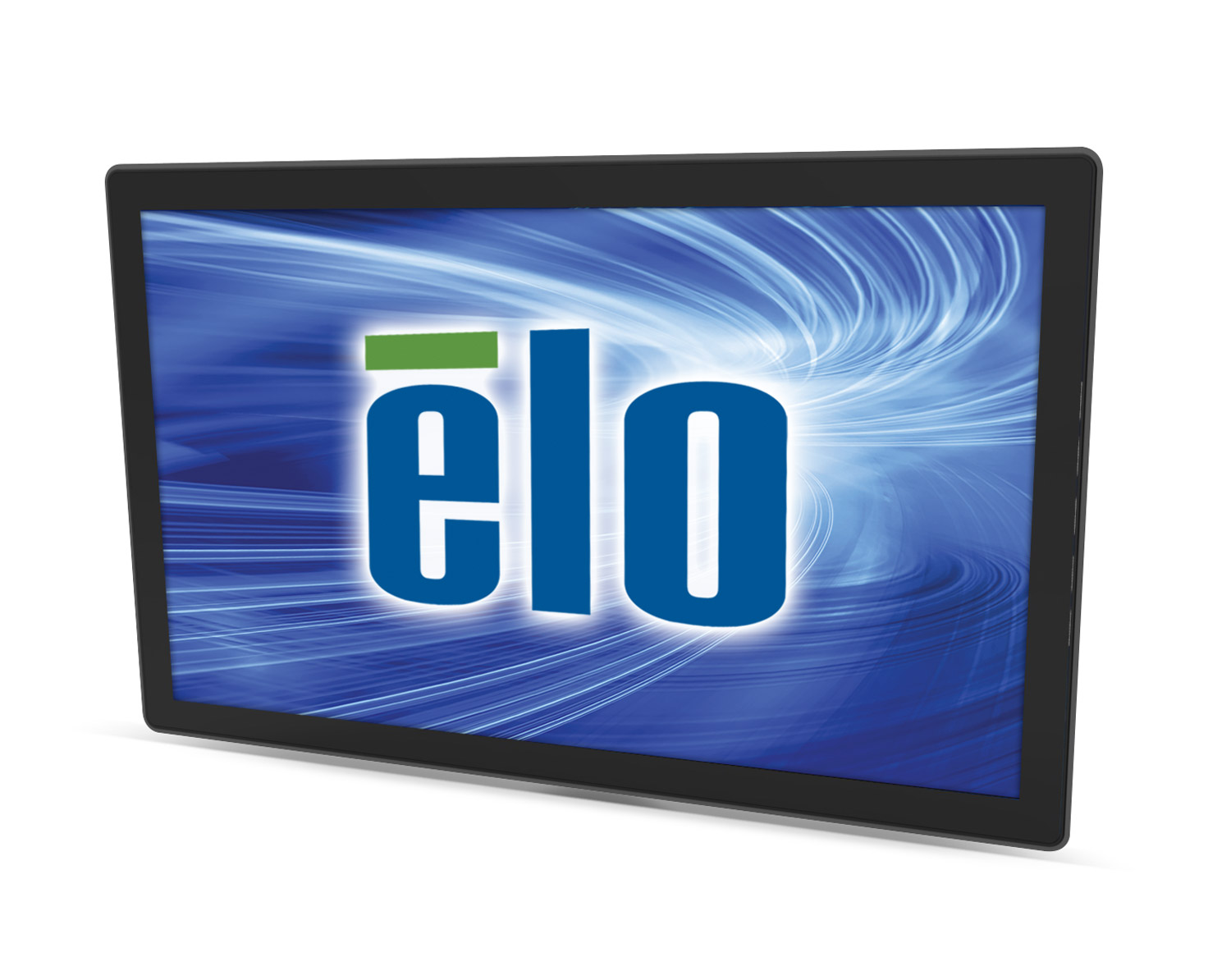

Elo 2440L

The Elo Touch Solutions 2440L 24-inch full HD open-frame touchmonitor delivers a professional-grade large format display in a slim, integrated package. The 2440L is designed for use in public environments in applications like information kiosks, ticketing, gaming machines and self-service stations.

The 2440L is available with a choice of single-touch and multi-touch technologies; IntelliTouch, IntelliTouch Plus, iTouch, iTouch Plus and projected capacitive. Elo's iTouch surface acoustic wave touchscreen technology and projected capacitive products offer a flat edge to edge solution that brings a sleek modern feel to any application.

The cost-effective iTouch versions are ideal for vertical implementations, and are available in both single-touch and dual-touch offerings. Projected capacitive products are suitable for tabletop or horizontal applications with multi-touch requirements. Both surface acoustic wave and projected capacitive are pure-glass touchscreen technologies that combine long-term reliability and drift-free stability with high-quality optics that preserves color purity.

Featuring a compact form factor and optional rack- and front-mount bezels, the 2440L is easy to integrate.

Specifications

Model 2440L
Color Black
LCD Technology Active matrix TFT LCD with LED backlight
Diagonal size 23.6"
Dimensions 561.6 x 325.8 x 42.2 mm / 22.1 x 12.8 x 1.7 inches
Aspect Ratio 16:09
Active Display Area 521.3 x 293.2 mm/23.5 x 1.7 inches
Native Resolution 1920 x 1080 - 1080p Full HD
Preset Video Timings 640x480 @ 60, 66, 72Hz
720x400 @ 70Hz
720x480 @ 60Hz
720x576 @ 50Hz
800x500 @ 60Hz
800 x600 @ 56, 60, 72Hz
1024x768 @ 60, 65,72,75Hz
1280x720 @ 50, 60Hz
1280x800 @ 60Hz
1280x960 @ 60Hz
1280x1024 @ 60, 75Hz
1360x768 @ 60Hz
1366x768 @ 60Hz
1440x900 @ 60Hz
1680x1050 @ 60Hz
1920x1080@50, 60Hz
Colors 16.7 million
Brightness (Typical) LCD panel: 300 nits
IntelliTouch: 270 nits
IntelliTouch Plus: 270 nits
iTouch: 270 nits
iTouch Plus: 270 nits
Projected Capacitive: 270 nits
Response Time (Tr+tf) (Typical) 5 msec
Viewing Angle (Typical) Horizontal: 170
Vertical: 160
Contrast Ratio (Typical) 1000:01:00
On-screen Display (OSD) Accessible through switches on the OSD Control Remote accessory
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Deafaults, Video Source
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: User Controls
Video Analog VGA on Female DE-15 connector
Digital DVI on Female DVI-D , Dual-Link connector
Input Video Horizontal Sync frequency range: 31.5-80KHz
Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
Monitor input power connector External DC - Optional power brick (sold separately) Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor input power signal specifications 12VDC +/- 5%
Adapter input connector IEC 60320 C14
Adapter input voltage range 100-240VAC, 50/60Hz
Power Consumption (Typical) ON (monitor + AC/DC adapter): 30W
SLEEP (monitor + AC/DC adapter): 2W;
OFF (monitor + AC/DC adapter): 1W
Weight Unpackaged: 5.7 kg (12.5 lb)
Packaged: 8.5 kg (18.7 lb)
Shipping Dimensions 685 x 455 x 150 mm / 27 x 17.9 x 5.9 inches
Temperature Operating: 0 C to 40 C (32 F to 104 F)
Storage: -20 C to 60 C (-4 F to 140 F)
Humidity (non-condensing) Operating: 20% - 80%;
Storage: 10% - 90%;
MTBF 50,000 hours demonstrated
Mounting Options 200mm x 100mm VESA 4-hole mounting interface on rear of unit.
Side/Flush mounting brackets included with the unit.
See dimensional drawings for details.

Part Number

Part Number Technology Bezel Surface Treatment Interface Availability
E000413 IntelliTouch Yes Clear USB/Serial Worldwide
E000414 iTouch No Clear USB/Serial Worldwide
E000415 IntelliTouch Plus Yes Clear USB Worldwide
E000416 iTouch Plus No Clear USB Worldwide
E000417 Projected capacitive No Clear USB Worldwide
