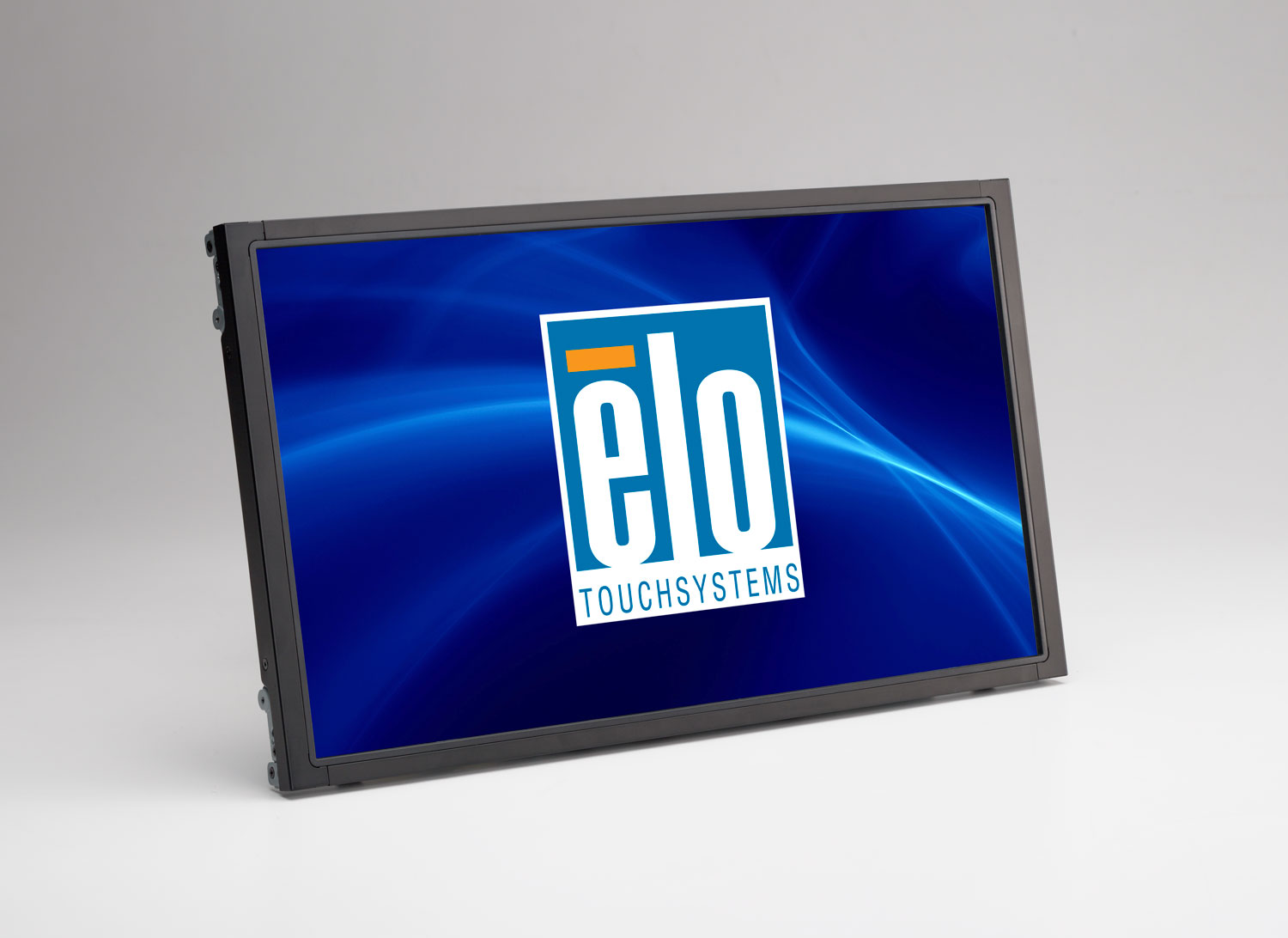

Elo 2243L

The Elo Touch Solutions 2243L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the Elo 2243L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2243L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.

State-of-the-art LED backlighting used in the 2243L makes the panel thinner overall as the cold cathode fluorescent lights (CCFL) are replaced with LED lights. LED lights also take less electricity to operate and generate less heat. This leads to the slimmer dimensions of the 2243L that facilitate OEMs and system integrators the flexibility to design aesthetically pleasing and stylish kiosks.

Available with IntelliTouch, IntelliTouch Plus, SecureTouch surface acoustic wave or true-flat projected capacitive touchscreen technology, the 2243L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission - for an accurate touch response and vivid images. Projected capacitive provides a durable, zero-bezel, glass-to-edge surface with multi-touch, while IntelliTouch is the optical standard of touch and widely used in kiosk and gaming applications. SecureTouch incorporates chemically strengthened 3mm glass that passes the UL60950 ball drop test for improved vandal resistance. All technology options are pure glass constructions to deliver a clear, bright and long-lasting performance and it also makes the touchscreens scratch-resistant. It is nearly impossible to physically "wear out" these touchscreens.

Specifications

Accessible through switches on the unit's tethered OSD Control Box.
Model 2243L
Display 21.5" diagonal
Aspect ratio 16:9, active matrix TFT LCD with LED backlighting
Useful screen area Horizontal: 18.8" (477 mm)
Vertical: 10.6" (268 mm)
Monitor dimensions Width: 20.2" (512 mm)
Height: 11.7" (298 mm)
Depth: 1.7" (43 mm)
See dimensional drawings for details
Native (optimal) resolution 1920x1080
Other supported resolutions 640x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz
1440x900 60Hz
1680x1050 60Hz
1920x1080 50, 60Hz
Colors 16.7 million
Brightness (typical) LCD panel: 250 nits
IntelliTouch: 225 nits
IntelliTouch Plus: 225 nits
PCAP: 225 nits
SecureTouch: 225 nits
Response time - total (typical) 5 msec
Viewing angle(typical) Horizontal: 85 or 170 total
Vertical: 80 or 160 total
Contrast ratio (typical) 1000:01:00
On-screen display (OSD) Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Input video format Analog VGA, DVI-D
Input video signal connector Mini D-Sub 15-Pin VGA type, DVI-D connector
Input frequency Horizontal: 31.5-80 kHz
Vertical: 50-75 Hz
Power supply External DC - optional power brick, sold separately
Input power connector specification (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)
Input voltage range: +12VDC 5%
Input power connector specification (Power brick)
Type: IEC 60320 C14
Adaper input voltage range: 100-240VAC, 50/60Hz
Power consumption (typical) ON (monitor only): 22W
ON (monitor + AC/DC adapter at 230V/50Hz): 25W
SLEEP (monitor + AC/DC adapter at 230V/50Hz): 2.2W
OFF (monitor + AC/DC adapter at 230V/50Hz): 1.1W
Shipping Box Dimensions (W x D x H) 7.87" (200 mm) x 24.41" (620 mm) x 16.93" (430 mm)
Weight Actual: 10.6 lb (4.8 kg)
Shipping: 15.3 lb (7.0 kg)
Temperature Operating: 0C to 40C (32F to 104F) Storage: -20C to 60C (-4F to 140F)
Humidity (noncondensing) Operating: 20%-80%
Storage: 10%-90%
Enclosure Color Black
Form factor Open-frame
MTBF 50,000 hours demonstrated
Mounting options VESA 4-hole 100mm mounting interface on rear of unit
2-hole mounting interface on all 4 sides
See dimensional drawings for details

Part Number

Technology Interface Input Video Format Surface Treatment Part # (RoHS
Compliant)
Availability
IntelliTouch Plus USB DVI/Analog VGA Clear E237584 Worldwide
IntelliTouch USB DVI/Analog VGA Clear E059181 Worldwide
Projected Capacitive USB DVI/Analog VGA Clear E059181 Worldwide
SecureTouch USB DVI/Analog VGA Clear E378034 Worldwide
