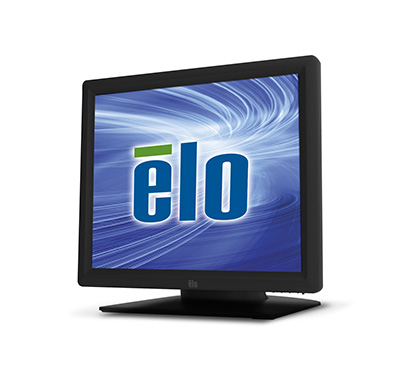

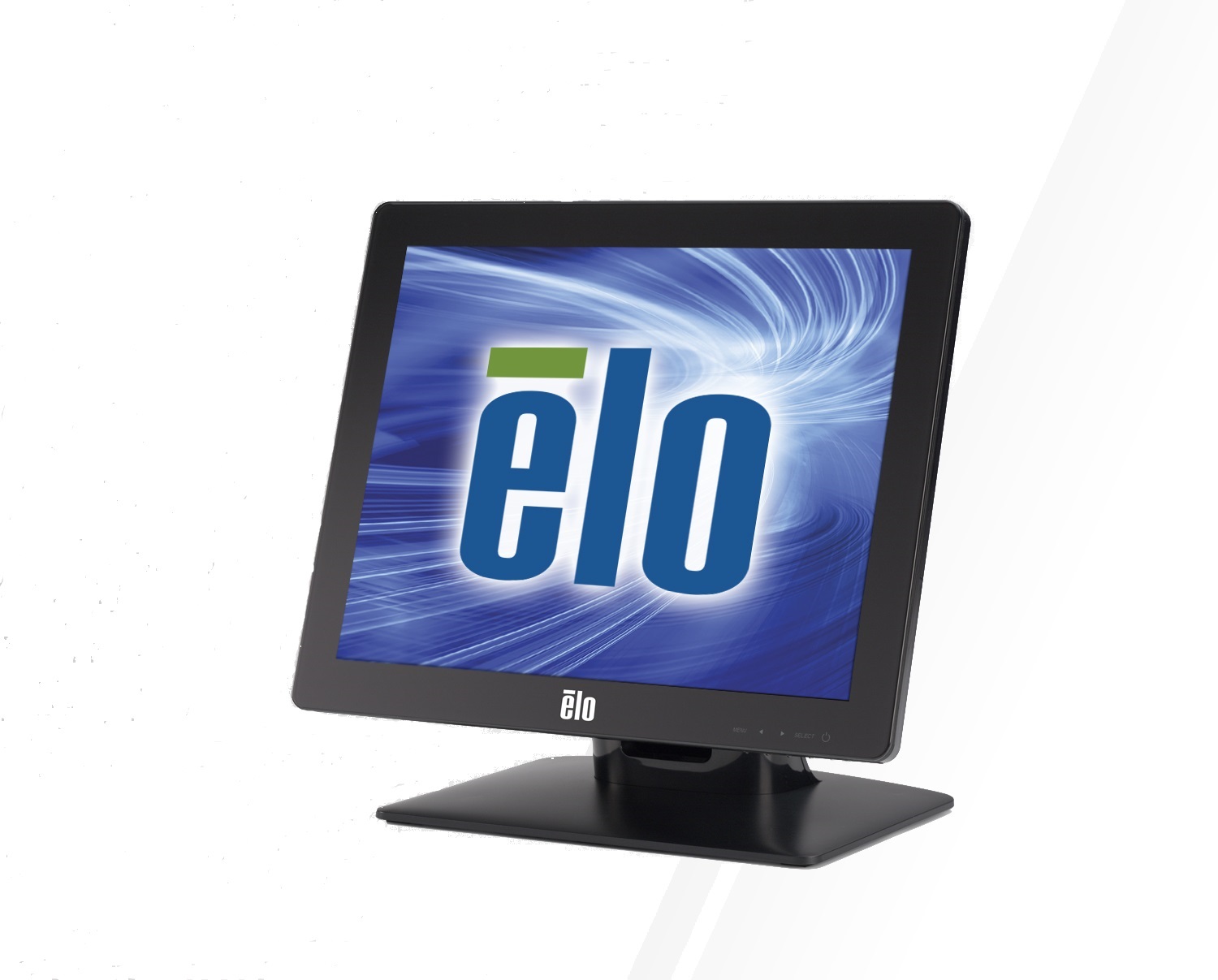

Elo 1517L

The 1517L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, built for touch industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1517L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.

The 1517L Touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panels.

Specifications

Model 1517L
Display 15.0" diagonal, Active matrix TFT LCD
Aspect Ratio 4:3, Active matrix TFT LCD
Useful Screen Area Horizontal: 12.0" (304 mm)
Vertical: 9.0" (228 mm)
Native (Optimal) Resolution 1024 x 768
Other Supported Resolutions 640x480 60Hz,75Hz
720x400 70Hz
800x600 56, 60Hz,75Hz
1024x768 60Hz,75Hz
Colors 16.2 million
Brightness
(Typical)
LCD panel: 250 nits
with iTouch: 225 nits
with AccuTouch: 200 nits
Response Time - Total
(Typical)
25 msec
Viewing Angle
(Typical)
Horizontal: 80 or 160 total
Vertical: 70 or 140 total
Contrast Ratio (Typical) 700:1
On-ScreenDisplay (OSD) Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust,
Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall
Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese,
Traditional Chinese, Japanese
Lockouts: OSD, Power
Input Video Format Analog VGA
Input Video Signal
Connector
Mini D-Sub 15-Pin VGA type
Input Frequency Horizontal: 31.5-80kHz
Vertical: 56-75Hz
Power Supply External DC (power brick)
Input Voltage AC: 100-240 VAC, 50/60 Hz
DC: +12VDC 5%
Input Connector AC: IEC 60320 C6
DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Power Consumption
(Typical)
10W
Monitor Dimensions
(with Stand)
(W x D x H)
14.1" (358 mm) x 6.8" (173 mm) x 12.5" (318 mm)
Dimensions vary with stand position and options selected
Shipping Box
Dimensions
(W x D x H)
17.2" (436 mm) x 14.6" (370 mm) x 7.7" (195 mm)
Weight Actual with stand: 9.0 lb (4.1 kg)
Shipping with stand: 15.0 lb (6.8kg)
Temperature Operating: 0C to 40C (32F to 104F)
Storage: -20C to 60C (-4F to 140F)
Humidity
(non-condensing)
Operating: 20%-80%
Storage: 10%-90%
Form Factor Desktop
Enclosure Color Black or White
MTBF 50,000 hours demonstrated
Stand Options Removable
Mounting Options 75 mm VESA mount
Threaded-through mounting holes, under stand
Sealing Touchscreen sealed to bezel
Touchscreen sealed to LCD
Other Features Security lock receptacle

Part Numbers

Technology Interface Surface Treatment Part # (RoHS
Compliant)
Color Availability
AccuTouch USB Antiglare E999454 Black Worldwide
AccuTouch USB Antiglare E247852 White Worldwide
iTouch Serial/USB Clear E829550 Black Worldwide
iTouch USB Clear E291747 White Worldwide

Optional Peripherals

Peripheral Interface Color Part #(RoHS Compliant)
Magnetic Stripe Reader USB Black E500356
Magnetic Stripe Reader USB White E233227
