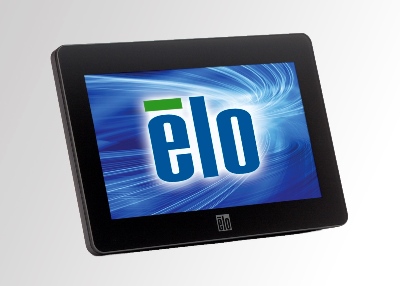

Elo 0700L

The 0700L touchmonitor can be applied as a second, customer-facing display in retail environments and can also be installed as the main display for applications requiring a small screen. End-cap shelf displays in retail settings or as personal gaming screens as part of a larger interactive gaming table benefit from the features and design of the 0700L. The 7" display utilizes DisplayLink™ technology that allows for power, video and touch signal through only one USB cable. The unit is available with a choice of the time-tested AccuTouch five-wire resistive touchscreen or a no-touch version.

This cost and space-saving display is "designed for touch"— the technology is built into the 0700L from the ground up and not added as an afterthought by altering the original display. The 0700L can function as a stand-alone or secondary unit attached to a primary POS display and includes a VESA mounting option for installation flexibility. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only) or web camera is easily installed by the user, providing an elegant, integrated solution. The display is factory sealed against dirt and dust.

Specifications

Model 0700L
Display 7" diagonal, Active matrix TFT LCD
Aspect ratio 16:9 Widescreen
Useful screen area Horizontal: 6.0" (154 mm)
Vertical: 3.4" (87 mm)
Monitor dimensions Width: 7.4" (189 mm)
Height: 4.9" (126 mm)
Depth: 1.2" (31 mm)
Native (optimal)
resolution
800 x 480 60 Hz
Colors 16.7 million
Brightness
(typical)
LCD panel: 200 nits
No touch: 180 nits
with AccuTouch: 160 nits
Response time - total
(typical)
25 msec
Viewing angle
(typical)
Horizontal: ±70° or 140° total
Vertical: -60°/+50° or 100° total
Contrast ratio (typical) 500:1
Input Video USB on Mini-B receptacle
Horizontal Sync Frequency Range: 30KHz
Vertical Sync Frequency Range: 60 Hz
Power supply DC (through USB)
Input voltage Monitor: 5 V ±5%
Input connector AC/DC Adapter: IEC 60320 C6
Monitor: Coaxial power jack (2 mm pin diameter,
6.5 mm barrel diameter, 10 mm barrel length)
Power consumption
(typical)
ON (monitor only): 4.5W
SLEEP (monitor only): 2.59W
OFF (monitor only, backlight off): 2.59W
Shipping Box
Dimensions
Width: 8.5" (225 mm)
Height: 6.4" (165 mm)
Depth: 3.1" (80 mm)
Weight Actual: 1.3 lb (.59 kg)
Shipping: 1.9 lb (.87 kg)
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity
(noncondensing)
Operating: 20%-80%
Storage: 10%-90%
Enclosure Color Black
Form factor Rear-face display with optional desktop stand sold separately
MTBF 50,000 hours demonstrated
Stand options Part no. E548382, sold separately
Mounting options VESA 4-hole 75mm mounting interface on rear of unit
Sealing Touchscreen sealed to bezel
Touchscreen sealed to LCD

Part Numbers

Technology Interface Surface
Treatment
Part #
(RoHS Compliant)
Availability
Non-touch USB Clear E807955 Worldwide
AccuTouch USB Anti-glare E791658 Worldwide

Accessories

Part # Description
E591542 2 MP Webcam Kit with USB cable
E039290 Magnetic Stripe Reader (MSR)
E548382 Desktop Stand
E412148 Bracket Kit for MSR or Webcam
E750095 Mounting Bracket for Display
compatible with B- and C-Series
Touchcomputers
E835074 Mounting Bracket for Display
compatible with D-Series
Touchcomputer
E332358 Mounting Bracket for 0700L as
Rear-Facing Display
E075614 CABLE-KIT-2.5 Meter Y-Cable for
the 0700L
